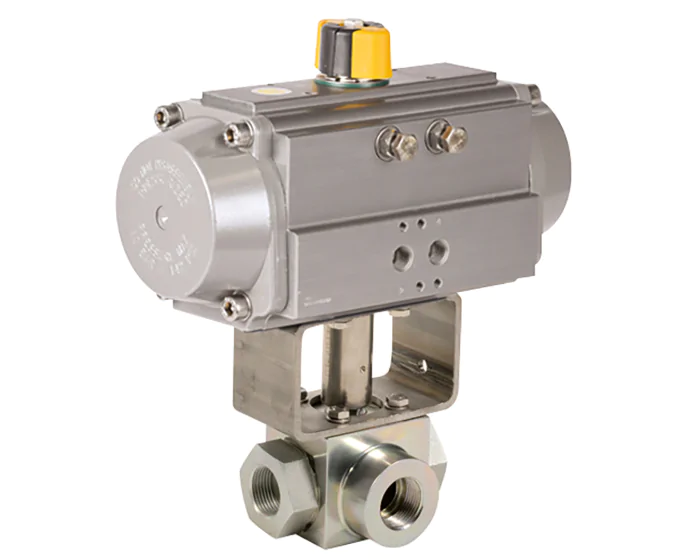

The 721ZA carbon steel 3-way L-port ball valve handles 315-500 bar high pressure. Chrome-plated body and ball, POM seats. With ALPHAIR RE/RES pneumatic actuator, it ensures reliable hydraulic flow control.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 100 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Carbon steel 1.0715 |
| Adjustable limit screws | Yes |
| DN | DN10 - 3/8'' |
| Face to Face (mm) | 113.0 |
| Body material | Carbon steel S250 |
| ATEX protection mode | Ex c |
| Number of ways | 3 |
| Bore | Reduced |
| Packing gland | FKM |
| PS (bar) | 315 |
| Connections | BSP FF |
| Seats | POM |
| Surface temperature | TX |
| TS max (°C) | 100 |
| TS min (°C) | -20 |
| 3-way type | L-port |
| Pneumatic actuator type | Spring return |
| ATEX zone | 1. 2 |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | Hydraulics |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Carbon steel S250 Reduced DN10 - 3/8'' | 275301017007R | S1000751 |
€281.33
(excl. btw)
|
add to cart |
| BSP FF Carbon steel S250 Reduced DN10 - 3/8'' | 275301017108R | S1000752 |
€360.16
(excl. btw)
|
add to cart |
| BSP FF Carbon steel S250 Reduced DN15 - 1/2'' | 275302017007R | S1000753 |
€287.86
(excl. btw)
|
add to cart |
| BSP FF Carbon steel S250 Reduced DN15 - 1/2'' | 275302017109R | S1000754 |
€415.60
(excl. btw)
|
add to cart |
| BSP FF Carbon steel S250 Reduced DN20 - 3/4'' | 275303017008R | S1000755 |
€388.51
(excl. btw)
|
add to cart |
| BSP FF Carbon steel S250 Reduced DN20 - 3/4'' | 275303017110R | S1000756 |
€563.29
(excl. btw)
|
add to cart |
| BSP FF Carbon steel S250 Reduced DN25 - 1'' | 275304017008R | S1000757 |
€445.44
(excl. btw)
|
add to cart |
| BSP FF Carbon steel S250 Reduced DN25 - 1'' | 275304017110R | S1000758 |
€605.43
(excl. btw)
|
add to cart |
